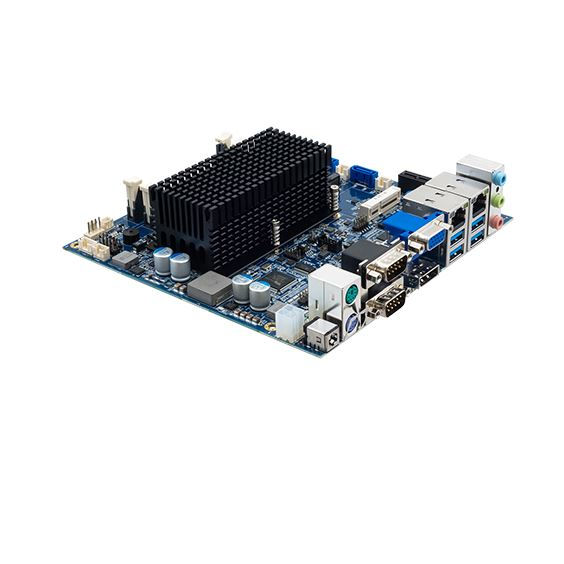

System
CPU Support
Intel® Pentium® N4200: 6w, 4C, 1.1/2.5GHz
Intel® Celeron® N3350: 6w, 2C, 1.1/2.4GHz
Chipset
Apollolake SoC
Memory Support
2 x SO-DIMM socket, supporting 1600/1866MHz DDR3L up to 8G (non-ECC)
BIOS
AMI BIOS
API/SW/FW
API/SW: Watchdog / DIO / Backlight Control / I²C / HW monitor
Power Supply
DC In 12V~24V
Connector: 1 x DC jack on rear IO, 1 x internal 4pin (2x2)
Power Consumption
TBD
Dimensions
170 x 170 mm (6.69" x 6.69")
Certifications
CE / FCC
O.S. Support
Windows 10 64bit
I/O Ports
SATA Interface
2 x SATA III (6.0Gb/s), 1 x M.2 slot (support 4202 device)
Expansion Bus
1 x PCIe (x1),
1 x half-sized mPCIe (PCIe signal only)
Serial Ports
6 x ports (pin header)
COM1/2: RS-232/422/485 & support RI/5V/12V selected by BIOS (rear I/O)
COM3~6: RS-232 (pin header)
Keyboard/Mouse
n/a
FAN
1 x 4-pin connector for CPU fan (compatible 3-pin system fan)
LAN
Dual LAN (2 x RJ45 on rear I/O)
Supports Wake-On-LAN
Controller: 2 x Intel® I210 (GbE)
Audio
1 x Mic In / 1 x Line In / 1 x Line Out (Rear I/O)
Codec IC: Realtek ALC888 (high definition codec)
Digital I/O
4 in/4 out (internal wafer)
USB
6 ports:
2 x USB 2.0 (internal wafer)
4 x USB 3.0 (rear I/O)
Environment
Operating Temp.
0~60°C (32~140°F)
Storage Temp.
-40~85°C (-40~185°F)
Humidity
Operation humidity 20~90%, storage humidity 20~95%
Graphics
VGA
1 x VGA (rear I/O), resolution: up to 1920x1200 @60Hz
Display Port
1 x DP/HDMI combo (rear I/O),
- Display Port 1.2: resolution up to 4096x2160 @60Hz
- HDMI 1.4b: resolution up to 3840x2160 @30Hz
LVDS
1 x LVDS (internal connector), up to dual channel, 48-bit,
resolution up to 1920x1200, w/ LCD 3.3V/5V/12V signal
