Rugged Specs | Download PDF
| MIL-STD-810G certified (Drop, Shock, Vibration, Dust, Altitude, High/Low Temperature, Humidity) 3′ drop 26 faces IP 5X certified Aluminum-magnesium alloy chassis Port covers Removable quick-release battery |
Tech Specs
| Display | 15.6″ FHD (1920×1080) 400 nits sunlight-readable display |
| Operating System | Windows® 10 Pro |
| Processors | Intel® Core™ i7-8565U (8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.6GHz, 8MB cache Intel® Core™ i5-8265U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.9GHz, 6MB cache |
| Memory | 2 slots 8GB up to 32GB (2400MHz DDR4) |
| Storage | 256GB SSD Optional 512GB/1TB SSD |
| Graphics | Intel® UHD Graphics 620 |

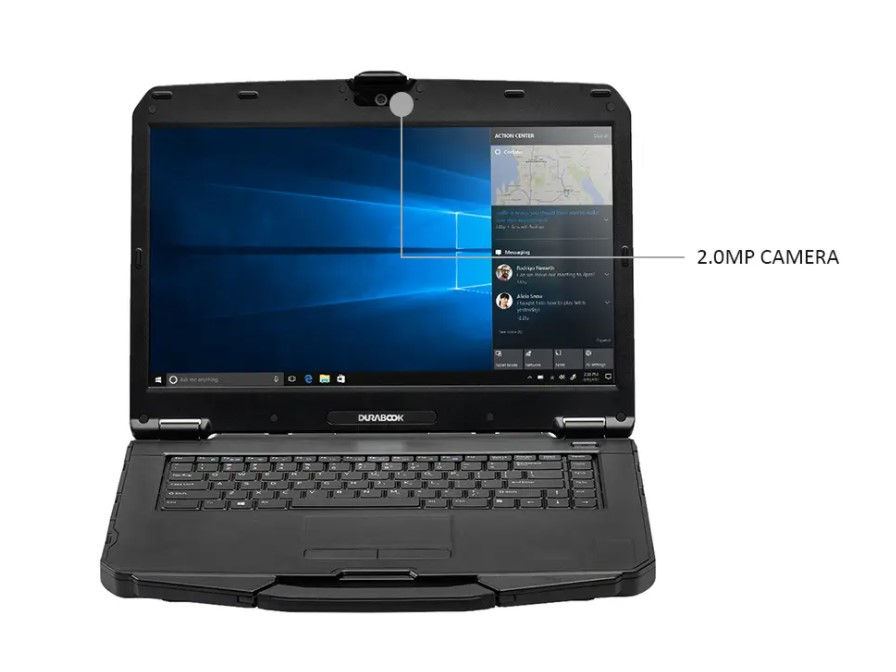

| Camera | Integrated 2.0 MP web-cam |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) | Optional DVD super multi Optional 2nd SSD Optional 2nd & 3rd SSD3 |
| I/O Ports | USB 3.1 Gen1 Type A x 2 USB 3.1 Gen2 Type A x 1 (speed up to 10Gbps) USB 3.1 Type C x 1 (speed up to 10Gbps) Audio in/out (combo jack) x 1 SD card (SDXC) x 1 10/100/1000 Ethernet (RJ-45) x 1 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS-232 : D-sub,9-pin) x 1 SIM card x 1 Smart card reader x 12 DC-In jack x 1 |
| Keyboard & Pointing Device | Standard membrane keyboard with optional LED backlight |
| Wireless & Communications | Integrated 10/100/1000 Ethernet Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac) Bluetooth® V5.0 Optional GPS and 4G LTE multi-carrier mobile broadband |
| Security | TPM 2.0 NIST BIOS compliant Smart card reader default2 Kensington lock Optional HF RFID/NFC1,2 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 7.4V, 7600mAh, 13.5 hours4 |
| Dimension & Weight | 375 mm (L) x 273 mm (W) x 29.5 mm (H) 2.6 kg |
| Warranty | 3-year limited warranty standard |
- Contact us for feature availability.
- RFID and Smart card reader are mutually exclusive.
- Factory Option Only. Support RAID 0 and RAID 1.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
