Overview

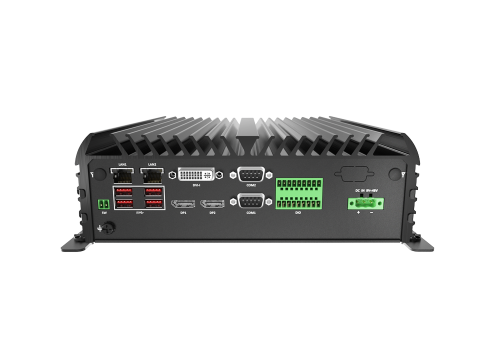

Based on 9th Gen. Intel® Core™ i7 / i5 / i3, the RCO-6100 series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. It offers dramatically enhanced CPU and graphics performance, wide power and feature scalability, and advanced features, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-25°C~70°C).
Featuring completely cable-less designed, high functional, one-piece housing design, and anti-vibration, the RCO-6100 series are ruggedized systems that can operate in harsh environments and are easy to install and maintain. Built-in over-voltage protection (OVP), over current protection (OCP), reverse protection, and a wide range of DC power input make the RCO-6100 series safe system for all industrial applications.
Specifications
| System | |
|---|---|
| Processor | Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP) - Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz - Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz - Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz - Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz - Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz - Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz - Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz - Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz - Intel® Core™ i3-8100T, 4 Cores, 6MB Cache, 3.1 GHz - Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz |
| System Chipset | Intel® Q370 Express Chipset |
| LAN Chipset | GbE1: Intel I219LM (Support Wake-on-LAN and PXE) GbE2: Intel I210-AT (Support Wake-on-LAN and PXE) GbE3~GbE6: Intel I350-AM4 (Optional) 10 GbE1~GbE2: Intel X710-AT2 (Optional) |
| Audio Codec | Realtek ALC888S |
| System Memory | 2x 260-Pin DDR4 2400/2666MHz SODIMM. Max. up to 64GB (Un-buffered and Non-ECC) |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Graphics | Intel® UHD Graphics 610/630 |
| VGA | Yes (by optional split cable) |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| DisplayPort | 2x DisplayPort, support resolution 4096 x 2304 |
| Multiple Display | Triple Display |
| Storage | |
| SSD/HDD | 2x Internal 2.5" SATA HDD Bay (support H=9mm) 2x Removable 2.5" SATA HDD Bay (support H=7mm, hot-swappable) , Support RAID 0, 1, 5, 10 |
| mSATA | 1x mSATA (Shared by 1x Mini PCI Express) |
| M.2 | 1x M.2 (M Key, NVMe PCIe x4, 2280) 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi) |
| SIM Socket | 2x External SIM socket |
| Expansion | |
| Mini PCI Express | 2x Full-size Mini PCIe (1x shared by 1x mSATA) |
4-Port GbE (Optional) | 4-port GbE module with Intel® I350-AM4 Chipset, RJ-45 or M12 connector (PoE optional) Occupied one Universal I/O Slot |
2-Port GbE (Optional) | 2-Port RJ45 10GbE with Intel X710-AT2 Chipset Occupied one Universal I/O Slot |
4-Port USB (Optional) | 4-Port USB with Renesas uPD720201K8 host controller Occupied one Universal I/O Slot |
| 5G (Optional) | 1x M.2 for 5G (B Key, PCIe x4, USB 3.0, 3042/3052) Including 2x SIM socket, 1x SIM switch Occupied one Universal I/O Slot |
| Operating System | |
| Windows | Windows 10 |
| Linux | Linux kernel |
| I/O | |
| COM | 4x RS-232/422/485 ; 2x RS-232/422/485 (internal) |
| USB | 4x USB 3.2 Gen 2 (10 Gbps) 5x USB 3.2 Gen 1 (5 Gbps) 1x USB 3.2 Gen 1 header (5 Gbps, internal) |
| LAN | 2x RJ45 |
| Audio | 1x Mic-in, 1x Line-out |
| DIO | 8 in / 8 out (Isolated) |
| Universal I/O Bracket | 1x Universal I/O Bracket (By mini PCIe interface) |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery |
| Power | |
| Power Mode | AT, ATX |
Power Supply Voltage | 9~48VDC |
Power Ignition Sensing | Power Ignition Management |
| Power Connector | 3-pin Terminal Block |
| Power Adaptor | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/5A, 120W |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temp. | -25°C to 70°C (35W CPU) ; -25°C to 60°C (65W CPU) |
| Storage Temp. | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Vibration | With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half-sine, 11ms |
Standards / Certification | CE, FCC Class A, E-Mark, EMC Conformity with EN 50155, EN 50121-3-2 |
| Physical | |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Dimension | 240 (W) x 261 (D) x 79.2 (H) mm |
| Weight | 7.5 ~ 8.25 kg |
| Mounting | Wall Mounting |
