Superior fanless embedded Computer with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x LAN, 1x PCIe x16 Expansion, 1x PCI Expansion



  • LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor
  • Intel® Q170 chipset
  • 2x 260-pin DDR4 SODIMM. max up to 32GB
  • Triple independent display supported by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 4x 2.5” SATA HDD bay and 2x mSATA supporting RAID 0 ,1, 5, 10
  • 4x full-size mini PCIe for communication or expansion modules, 4x SIM socket
  • 1x PCIe x16 and 1x PCI expansion, 2x universal bracket (for mini PCIe application)
  • 4x RS-232/422/485 (w/ 2x internal), 6x USB 3.0, 2x USB 2.0, TPM 2.0
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC wide range power input supporting AT/ATX mode
  • -25°C to 70°C extended operating temperature

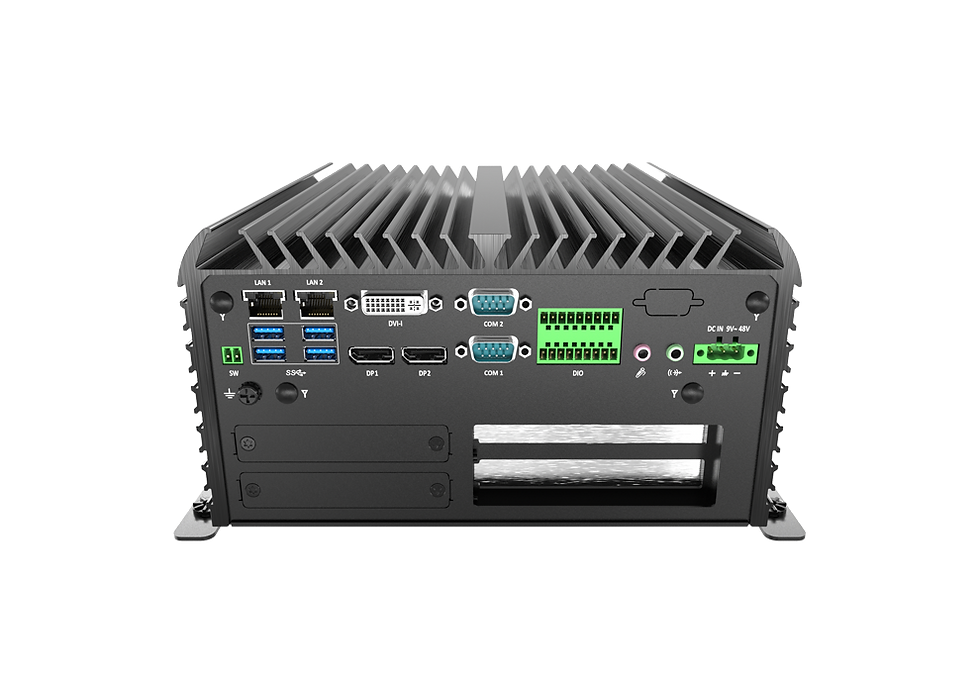

RCO-6022PE Superior Fanless Embedded PC
