System
CPU Support
LGA1151 socket for Intel® 7th/6th Gen. Core™ i7/ i5/ i3 desktop CPU
CPU List
7th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE)
6th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE)
Pentium®: G4400(TE)
Celeron®: G3900(TE)
Chipset
Intel® H110 / Q170
Memory Support
2 x SO-DIMM sockets, supporting 1866/2133MHz DDR4 memory up to 32GB
BIOS
AMI UEFI BIOS
Watchdog
1~255 seconds watchdog timer selectable
Power Supply
ATX power (24+4pin)
Power Consumption
+5V: 1.26A; +12V: 0.28A; +3.3V: 0.28A;
+5VSB: 0.08A (CPU: i7 6700 3.4GHz)
Dimensions
170 mm × 170 mm (6.69" × 6.69")
Certifications
FCC / CE
O.S. Support
Windows 10 64bit / Windows 8.1 64bit / Windows 7 32/64bit

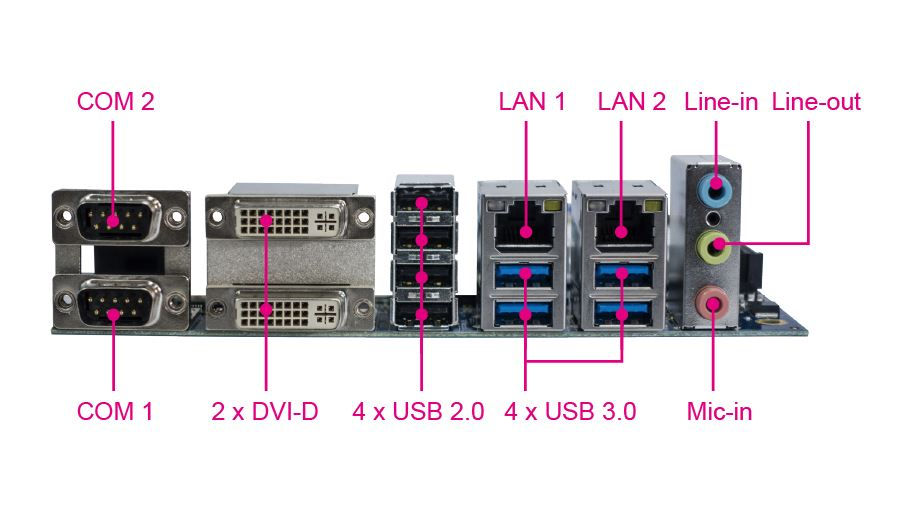

I/O Ports
SATA Interface
2 x SATA3.0
(Only Q170 SKU supports RAID 0/1)
Expansion BUS
1 x PCIe (x16),
1 x half-sized mPCIe (w/o USB signal)
Serial Ports
6 ports
COM1: RS-232/422/485 (rear I/O)
COM2: RS-232 (rear I/O)
COM3~6: RS-232 (internal wafer)
COM1/2/4 supports 5V/12V, selected by jumper
Parallel Port
1 x Parallel Port (SPP/EPP/ECP) (box header)
FAN
1 x CPU fan, 1 x system fan (internal connector)
LAN
Dual LAN (2 x RJ45 on rear I/O)
LAN 1: Intel® PHY 219 LM (GbE)
LAN 2: Intel® LAN 210 AT (GbE)
Supports Wake-on-LAN
Audio
Mic-In / Line-In / Line-Out (rear I/O)
USB
9 ports:
4 x USB3.0 (rear I/O)
4 x USB2.0 (rear I/O)
1 x USB2.0 (internal wafer)
Environment
Operation Temp.
0~60°C (32~140°F)@ humidity 20~90%
Storage Temp.
-40~85°C (-40~185°F)@ humidity 20~95%
Graphics
DVI
2 x DVI-D (rear I/O) up to 1920x1200 @60Hz
Display Port
1 x DP (internal) up to 4096x2304 @60Hz
