System
CPU Support

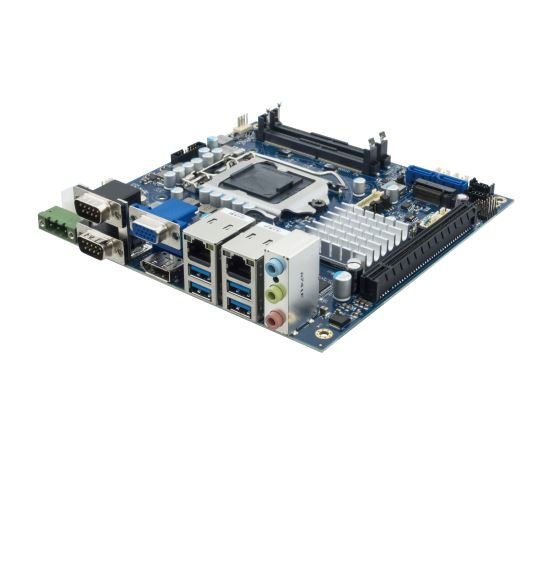

LGA1151 socket for Intel® 7th/6th Gen. Core™ i7/ i5/ i3/ Pentium® / Celeron® desktop CPU
CPU List
7th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE)
6th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE)
Pentium®: G4400(TE)
Celeron®: G3900(TE)
Chipset
Intel® H110/Q170
Memory Support
2 x SO-DIMM sockets, supporting 1866/2133MHz DDR4 up to 32GB
BIOS
AMI UEFI BIOS
Watchdog
1~255 seconds watchdog timer selectable
Power Supply
DC In 12V (rear I/O, phoenix 3 pins terminal block);
ATX 4 pin power connector
Power Consumption
+12V: 10.3A (H110 sku)
+12V: 12.2A (Q170 sku)
Dimensions
170 x 170 mm (6.69" x 6.69")
Certifications
FCC / CE
O.S. Support
Windows 10 IoT / Windows 8.1 / Windows 8 / Windows 7
(Intel 7th generation CPU is ONLY compatible with Windows 10 IoT)
I/O Ports
SATA Interface
2 x SATA 3.0
(Only Q170 SKU supports RAID 0/1)
Expansion BUS
1 x PCIe (x16)
1 x M.2 (2242-D2-M)
Serial Ports
2 ports
COM1: RS-232/422/485 (rear I/O)
COM2: RS-232 (rear I/O)
COM1/2 support 5V/12V/RI jumper selectable
Parallel Port
n/a
FAN
1 x CPU fan, 1 x system fan (internal connector)
LAN
Dual LAN (2 x RJ45 on rear I/O)
LAN 1: Intel® PHY 219 LM (GbE)
LAN 2: Intel® LAN 211 AT (GbE)
Supports Wake-On-LAN / PXE
Audio
Mic In / Line In / Line Out (rear I/O)
USB
8 ports:
4 x USB 3.0 (rear I/O)
4 x USB 2.0 (rear I/O)
Environment
Operation Temp.
0~60°C (32~140°F) @humidity 20~90%
Storage Temp.
-40~85°C (-40~185°F) @humidity 20~90%
Graphics
VGA
1 x VGA up to 1920x1200 @60Hz (rear I/O)
Display Port
1 x display port up to 4096x2304 @60Hz (rear I/O)
LVDS
1 x LVDS, dual channel, resolution range: 800x600~1920x1200 (internal)
