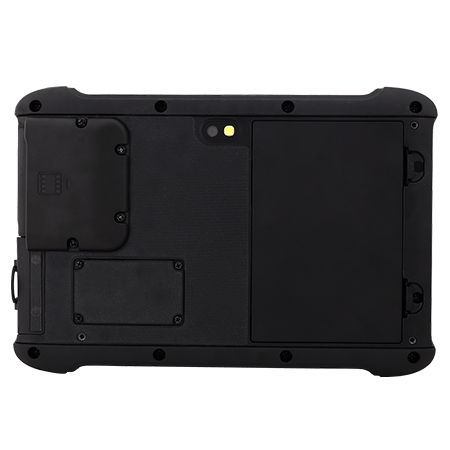

Intel® Pentium® N4200 Apollo Lake processor, Windows tablets
8'' daylight readable panel with direct optical bonding
Default D-sub for vehicle gateway connection
Built-in Smart Card Reader, Windows 10 tablets
Optional Barcode Reader

Display
Size 8 inches
Resolution 1280x800
Type Projected Capacitive Multi Touch
Panel Brightness 510 nits
Contrast Ratio 800:1
View Angles 85,85,85,85
Bonding Optical Bonding for Sunlight Viewability
System Specification
Processor Intel Pentium N4200 1.1GHz (up to 2.5GHz)
Memory 4GB LPDDR4
8GB LPDDR4 (Optional)
Storage 128 GB SSD
Additional storage available with micro SDXC card slot
256 GB SSD (Optional)
512 GB SSD (Optional)
Smart Card Reader Built-in Smart Card Reader, Comply with ISO7816-1.2.3 T=1 and T=Ø protocol
Security Trusted Platform Module (TPM) 2.0
Operating System Windows 10 IoT Enterprise (64 bit)
WLAN Support
BT Support
WWAN 4G LTE (Optional)
GNSS GPS, GLONASS
Sensors Light sensor/ G-sensor / Gyro
Camera
Front Camera 2MP Front Camera
Rear Camera 8MP Rear Camera with Autofocus and LED Light
Mechanical
Dimension 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches)
Weight 0.9 kg with battery
Cooling System Fanless design
IO Ports
USB Port 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
Audio 1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
Dual Speaker
SD Card Slot
1 x Micro SDXC Slot
SIM Card Slot
1 x Micro SIM card slot
Expansion Port
1 x 15-pin D-sub connector for Power Input, USB 2.0,Audio Out, and Tx/ Rx
Indicator 4x LED Indicator for Power, Battery, HDD, RF status
Docking Connector 1 x 19-pin docking connector
Environment
Operating Humidity 10% to 90% RH, non-condensing
Operating Temperature -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 5 ft
IP rating IP65
Certification CE, FCC, E-Mark
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Control
Button
1 x Power,1 x menu,
3 x Programmable Function Keys
Power
Battery 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P)
Battery Operating Time 8 Hours
Power Rating 19V DC
Adapter 100-240V, 50-60Hz / 19V DC
Accessory
Adapter and Power Cord
Standard Battery Pack
Optional Accessory
Desk Dock (Optional)
Vehicle Dock (Optional)
Vehicle Gateway (Optional)
Vehicle Cradle (Optional)
Battery Charger (Optional)
Vehicle Charger (Optional)
Hand Strap (Optional)
Capacitive Stylus (Optional)
Barcode Scanner
1D/2D barcode reader (Optional)
