11th Gen. Intel® Processor Family – Tiger Lake Processor industrial rugged tablet
14-inch tablet, 1920 x 1080 wide viewing angle LED Panel
Optical bonding and Antiglare technology for sunlight readability
IP65 waterproof and dustproof
Hot-swappable battery for wholedaywork
Integrated Smart Card Reader


Size    14 inches
Resolution    1920x1080
Type    Projected Capacitive Multi Touch
Panel Brightness    700 nits
Contrast Ratio    800:1
View Angles    85,85,85,85
Bonding    Optical Bonding for Sunlight Viewability
Viewability    Anti-Glare touch treatment
System Specification

ProcessorIntel Core i5-1135G7 2.4GHz (up to 4.2GHz)


8GB DDR4 SDRAM (Optional)

16GB DDR4 SDRAM (Optional)

32GB DDR4 SDRAM (Optional)

Storage 128GB SSD

Additional storage available with micro SDXC card slot

256GB SSD (Optional)

512GB SSD (Optional)

1TB SSD (Optional)

2TB SSD (Optional)

Ethernet controller 1 x RJ45-10/100/1000 Mbps LAN

Smart Card Reader Built-in Smart Card Reader, Comply with ISO7816-1.2.3 T=1 and T=Ø protocol

Security Trusted Platform Module (TPM) 2.0 Kensington Lock

Operating System Windows 10 IoT Enterprise (64 bit)

WLAN Support

BT Support

WWAN 4G LTE (Optional)


RFID HF RFID reader 13.56 MHz (Optional)

Sensors Light sensor/ G-sensor / Gyro

Front Camera 2MP Front Camera

8MP Rear Camera with auto-focus and LED light

Dimension 341.91 x 224.67 x 25.4 mm

Weight 1.75 kg

Cooling System Fan design

USB Port 2 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)

LAN 1 x RJ45-10/100/1000 GigaLAN port

Video 1 x Micro HDMI (Optional)

Audio 1 x Audio combo 3.5mm

audio combo jack Dual

Digital Mic With Noise Cancellation

Dual Speaker

SD Card Slot 1 x Micro SDXC slot

SIM Card Slot 1 x Nano SIM card slot

Indicator 4x LED Indicator for Power, Battery, HDD, RF status

Docking Connector 1 x 19-pin docking connector

Operating Humidity    10% to 90% RH, non-condensing
Operating Temperature    -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature    -30°C to 70°C (-22°F to 158°F)
Shock    MIL-STD-810H Method 516.8 Procedure I
Vibration    MIL-STD-810H Method 514.8 Procedure I
Drop    MIL-STD-810H Method 516.8, 4 ft
IP rating    IP65
Certification CE, FCC

Security Function
SOTI MobiControl    SOTI MobiControl Compliance
Kensington Lock    Kensington Lock Support

Button 1 x Power,3 x function keys



Internal Battery: 10.8V typ. 2400 mAh Li-Ion Battery Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P)

Power Rating 19V DC

Adapter 100-240V, 50-60Hz / 19V DC

Accessory Adapter and Power Cord Capacitive Stylus Standard Battery

Optional Accessory

Kickstand (Optional)

Vehicle Charger (Optional)

Battery Charger (Optional)

Shoulder Strap (Optional)

Carry Bag (Optional)

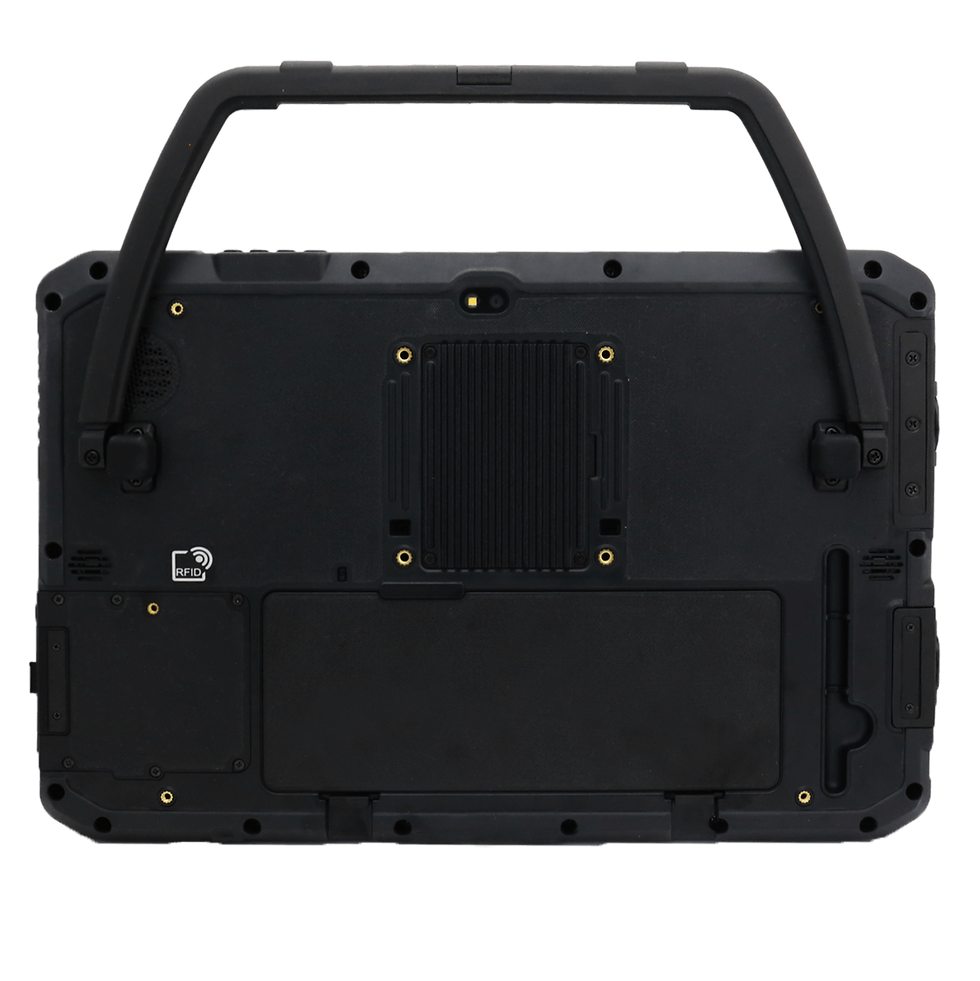

M140TGT - 14" Intel® Core™ i5-1135G7 Rugged Tablet Integrated Smart Card
