  • 11.6” 1920 x 1080, 850 nits IPS LED Panel with direct optical bonding
  • Intel® Core™ i5-1135G7 Tiger Lake processor
  • IP65 waterproof and dustproof, MIL-­STD­-810H shock, vibration and drop resistance
  • Sunlight readable with antiglare solution
  • Hotswappable battery design
  • USB Type-C port support power delivery 20V In



Display
Size    11.6 inches
Resolution    1920x1080
Type    Projected Capacitive Multi Touch
Panel Brightness    850 nits
Contrast Ratio    1000:1
View Angles    85,85,85,85
Bonding    Optical Bonding for Sunlight Viewability
Viewability    Anti-Glare touch treatment
Touch Mode    Support Hand/Rain, Stylus, Glove Mode

System Specification
Processor    Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory    4GB DDR4 SDRAM 8GB DDR4 SDRAM (Optional) 16GB DDR4 SDRAM (Optional) 32GB DDR4 SDRAM (Optional)
Storage    128GB SSD Additional storage available with micro SDXC card slot 256GB SSD (Optional) 512GB SSD (Optional) 1TB SSD (Optional) 2TB SSD (Optional)
Ethernet controller    1 x RJ45-10/100/1000 Mbps LAN
Security    Trusted Platform Module (TPM) 2.0 Kensington Lock
Operating System    Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise SAC (64 bit) (Optional)
WLAN    Support
BT    Support
WWAN    4G LTE (Optional)
GNSS    GPS, GLONASS
     RFID    HF RFID reader 13.56 MHz (Optional)
Sensors    Light sensor/ G-sensor / Gyro
Camera
Front Camera    2MP Front Camera
Rear Camera    8MP Rear Camera with auto-focus and LED light
Mechanical
Dimension    300.67 x 201.97 x 22.5 mm
Weight    1.5 kg (3.3 lbs) with standard battery
Cooling System    Fan design

IO Ports
USB Port    1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)
LAN    1 x RJ45-10/100/1000 GigaLAN port (Optional)
Video    1 x Micro HDMI (Optional)
Audio    "1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation"
SD Card Slot    1 x Micro SDXC slot
SIM Card Slot    1 x Nano SIM card slot
Expansion Port    1 x Expansion Connector for USB3.0 / UART (Optional)
Indicator    4x LED Indicator for Power, Battery, HDD, RF status
Docking Connector    1 x 19-pin docking connector
Environment Operating Humidity 10% to 90% RH, non-condensing

Operating Temperature -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature -30°C to 70°C (-22°F to 158°F)

Shock MIL-STD-810H Method 516.8 Procedure I

Vibration MIL-STD-810H Method 514.8 Procedure I

Drop MIL-STD-810H Method 516.8, 4 ft

IP rating IP65

Certification CE, FCC

Security Function
SOTI MobiControl   Compliance
Kensington Lock  Support

Control - Button 1 x Power,3 x function keys

Power
Battery    Hot-swappable 10.8V, typ. 4700 mAh Li-Polymer Battery (3S2P)
Battery Operating Time    Standard. Battery: 8 hours
Power Rating    19V DC
Adapter    100-240V, 50-60Hz / 19V DC
Accessory Adapter and Power Cord Capacitive Stylus Standard Battery

Optional Accessory

Desk Dock (Optional)

Vehicle Dock (without VGA output) (Optional)

Vehicle Cradle (Optional)

Vehicle Charger (Optional)

High Capacity Battery (Optional)

Hand Strap (Optional)

Shoulder Strap (Optional)

Carry Bag (Optional)

Barcode Scanner 1D/2D barcode reader (Optional)

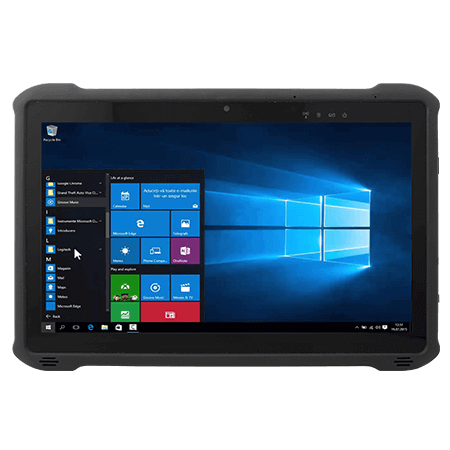

M116TG - 11.6" Windows Rugged Tablet with Intel® Core™ i5-1135G7
