Size: 14 inches

Resolution: 1920x1080

Type: Projected Capacitive Multi Touch

Panel Brightness: 700 nits

Contrast Ratio: 800:1

View Angles: 85,85,85,85

Bonding: Optical Bonding for Sunlight Viewability


System Specification

Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)

Memory: 8GB DDR4 SDRAM 16GB DDR4 SDRAM (Optional) 32GB DDR4 SDRAM (Optional)

Storage: 256GB M.2 SSD / 512GB M.2 SSD (Optional) / 1TB M.2 SSD (Optional) / 2TB M.2 SSD (Optional) Additional storage available with up to 2TB M.2 (PCIe NVMe) SSD, self-encrypted. (Optional)

Ethernet controller: 1 x RJ45-10/100/1000 Mbps LAN

Smart Card Reader: Smart Card Reader (Optional)

Security: Trusted Platform Module (TPM) 2.0 Kensington Lock

Operating System: Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise SAC (64 bit) (Optional)

WLAN: Support

BT: Support

WWAN: 4G LTE (Optional)


RFID: HF RFID reader 13.56 MHz (Optional)

Fingerprint Scanner: Fingerprint scanner (Optional)


Front Camera: 2MP front camera

Rear Camera: 8MP rear camera with autofocus and LED light (Optional)


Dimension: 340 x 230 x 38 mm

Weight: 2.5 kg

Cooling System: Fanless thermal design

IO Ports:

USB Port

3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)

Serial Port

1 x RS232 (DB9)


1 x RJ45-10/100/1000 GigaLAN port


1 x HDMI 4K Output (Optional)


1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker

SD Card Slot

1 x Micro SDXC Slot

SIM Card Slot

1 x Nano SIM card slot

Expansion Port

1 x Expansion slot for smart card reader and removable SSD (Optional)


4x LED Indicator for Power, Battery, HDD, RF status


Operating Humidity: 10% to 90% RH, non-condensing

Operating Temperature: -20°C to 50°C (AC mode), 0°C to 40°C (Battery mode)

Storage Temperature: -30°C to 70°C

Shock: MIL-STD-810H Method 516.8 Procedure I

Vibration: MIL-STD-810H Method 514.8 Procedure I

Drop: MIL-STD-810H Method 516.8, 3 ft

IP rating: IP65

Certification: CE, FCC

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock Support

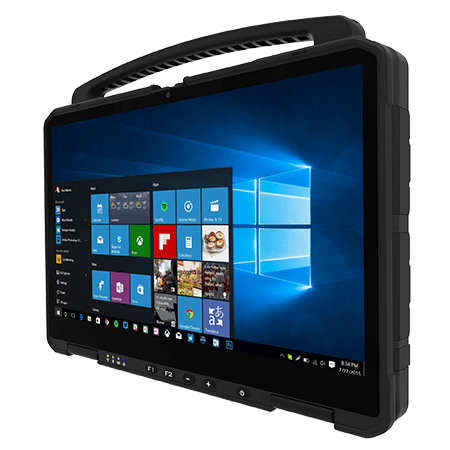

L140TG-4, 14inch Rugged Laptop with Intel® Core™ i5-1135G7
