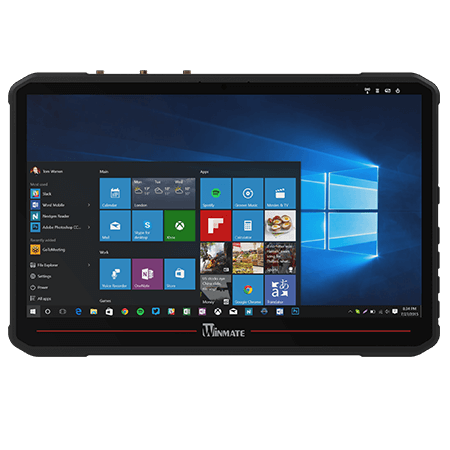

Intel® Elkhart lake x6425E Processor vehicle computer
14” 1920 x 1080 Panel with PCAP touch screen
IP65 waterproof and dustproof
Wide power input 10-60V DC with ignition
Wide range operating temperature
Support VESA Mount
Display
Size 14.0 inches
Resolution 1920x1080
Type - Projected Capacitive Multi Touch
Panel Brightness 700.0 nits
Contrast Ratio 800:1
View Angles 85,85,85,85
Bonding Optical Bonding for Sunlight Viewability
System Specification
Processor - Intel Atom x6425E 2GHz (up to 3GHz)
Memory
1 x SO-DIMM, DDR4 3200 MHz, 4GB
8GB (Optional)
Storage
1 x M.2 2242 SSD 128GB
256GB (Optional)
Security TPM 2.0
Operating System
Windows 10 IoT Enterprise (64 bit)
WLAN Support
BT Support
WWAN
4G/LTE (Optional)
GNSS
GPS/GLONASS (Optional)
Sensors G-Sensor, Light Sensor ,Temp Sensor
Front Camera
2MP Camera
Mechanical
Dimension
342 x 225 x 52 mm
Weight
2.5 kg
Mounting
VESA Mount
Cooling System
Fanless Design
IO Ports
USB Port
1 x USB 3.0 Type C
1 x USB 2.0 Port
Serial Port
2 x RS232/422/485 (Default RS232)
LAN
1 x Gigabit LAN port
PSE (IEEE 802.3at 30W) (Optional)
Audio
1 x Audio(Mic in & Line Out) either one with DIDO (Optional)
SD Card Slot
1 x Micro SD Card Slot
SIM Card Slot
1 x Dual-Nano SIM Card Slot
Indicator
4 x LED Indicator
DIDO
1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional)
CANBUS
1 x CANBus (Optional)
Environment
Operating Humidity 5% to 90% RH, Non-Condensing
Operating Temperature -30°C to 50°C
Storage Temperature -30°C to 60°C
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
IP rating IP65
Impact
Support EN62262 IK07 Rating
ESD
Compliant with EN 61000-4-2, enhanced ESD to ±12kV direct & ±15kV air
Certification CE, FCC
FCC (Electromagnetic Emissions), IC (ICES-003)
UL60950-1, EN60950-1, PTCRB
