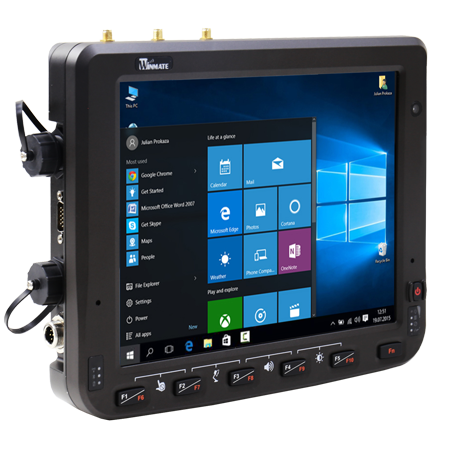

Intel® Elkhart lake x6425E Processor, Windows Vehicle Mounted Terminal
10.4” 1024 x 768 Panel with PCAP touch screen
IP65 waterproof and dustproof
Wide power input 10-60V DC with ignition
Wide range operating temperature
Support VESA Mount
Display
Size 10.4 inches
Resolution 1024x768
Projected Capacitive Multi Touch
Panel Brightness 400 nits - 800 nits(Optional)
Contrast Ratio 1200:1
View Angles 88,88,88,88
Touch Mode Support Hand, Stylus, Glove Mode
System Specification
Processor
Intel Atom x6425E 2GHz (up to 3GHz)
Memory
1 x SO-DIMM, DDR4 3200 MHz, 4GB
8GB (Optional)
Storage
1 x M.2 2242 SSD 128GB
256GB (Optional)
Security TPM 2.0
Operating System
Windows 10 IoT Enterprise (64 bit)
WLAN Support
BT Support
WWAN
4G/LTE (Optional)
GNSS
GPS/GLONASS (Optional)
Sensors
G-Sensor, Light Sensor ,Temp Sensor
Camera
Front Camera 2MP Camera
Environment
Operating Humidity 5% to 90% RH, Non-Condensing
Operating Temperature -30°C to 50°C
Storage Temperature -30°C to 60°C
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
IP rating IP65
Impact
Support EN62262 IK07 Rating
ESD
Compliant with EN 61000-4-2, enhanced ESD to ±12kV direct & ±15kV air
Certification
CE, FCC
FCC (Electromagnetic Emissions), IC (ICES-003)
UL60950-1, EN60950-1, PTCRB
IO Ports
USB Port
1 x USB Type-C
1 x USB 2.0 Type-A
Serial Port
2 x RS232/422/485 (Default RS232)
LAN
1 x Gigabit LAN port
PSE (IEEE 802.3at 30W) (Optional)
Audio
1 x Audio(Mic in & Line Out) either one with DIDO (Optional)
SD Card Slot
1 x Micro SD Card Slot
SIM Card Slot
1 x Dual-Nano SIM Card Slot
Indicator
6 x LED Indicator
(WLAN, BT, UPS battery, HDD, Screen Blanking, Heater)
DIDO
1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional)
CANBUS
1 x CANBUS (Optional)
Mechanical
Dimension 268.1 x 214 x 51 mm
Weight 2.4kg
Mounting VESA Mount
Cooling System Fanless Design
