System

CPU Support

Intel® Celeron® N3350: 6w, 2C, 2.4Ghz
Intel® Pentium® N4200: 6w, 4C, 2.5Ghz
Intel® Atom™ x5 E3930: 6.5w, 2C, 1.8Ghz
Intel® Atom™ x5 E3940: 9.5w, 4C, 1.8Ghz
Intel® Atom™ x7 E3950: 12w, 4C, 2.0Ghz

Chipset

Intel® SoC

DRAM

1 x SO-DIMM socket, supporting 1600/1867 DDR3L memory up to 8G (non-ECC)

BIOS

AMI UEFI BIOS

API/SW/FW

API/SW: Watchdog / GPIO / backlight control / Fan control / I²C / HW monitor
FW: fTPM, selectable by BIOS

Power Supply

DC In 12V only (onboard 4 pin connector)

Dimensions

102 x 145 mm (4.02" x 5.71")

Certifications

FCC / CE

O.S. Support

Windows 10 64bit / Ubuntu17.04 (kernel:4.4)

I/O Ports

SATA Interface

1 x SATA III port (6.0Gb/sec)

Serial Ports

4 ports (pin header)
COM 1: RS232
COM 2: RS232/422/485, selected by BIOS
COM 3: RS232 with RI/5V/12V, selected by jumper
COM 4: RS232 with RI/5V/12V, selected by jumper

LAN

Dual LAN (2 x RJ45 on rear I/O)
Supports Wake-On-LAN
Controller: 2 x Intel® I210-IT/AT

Audio

Mic In / Line In / Line Out (pin header)
Codec IC: Realtek ALC888 (high definition codec)

GPIO

8 bit programmable GPIO (with API / utility support)

USB

6 ports:
2 x USB 2.0 (internal wafer)
4 x USB 3.0 (rear I/O)

Expansion Bus

1 x full-sized mSATA slot (with SATA and USB signal)
1 x full-sized mPCIe slot (with PCIe and USB signal)
1 x I²C onboard connector with 5V power (with API / utility support)

FAN

1 x 4 pin connector for system fan (with API / utility support)

Environment

Operating Temp.

0°C~60°C(32°F~140°F) @ humidity 20~95% (with heatsink) for N4200 / N3350 SoC
-40°C~85°C (-40°F~185°F) @ humidity 20~95% (with heatsink) for Atom™ x7 / x5 E3900 SoC

Storage Temp.

-40°C~85°C (-40°F~185°F)@ humidity 20~95%

Graphics

DisplayPort

1 x DP1.2a (rear I/O), resolution: up to 4096 x 2160 @60Hz

VGA

1 x VGA (rear I/O), resolution: up to 1920 x 1200 @60Hz

LVDS

1 x LVDS (onboard connector), up to dual channel, 24 bit,
resolution range: 800 x 600 to 1920 x 1200, set by slide switch

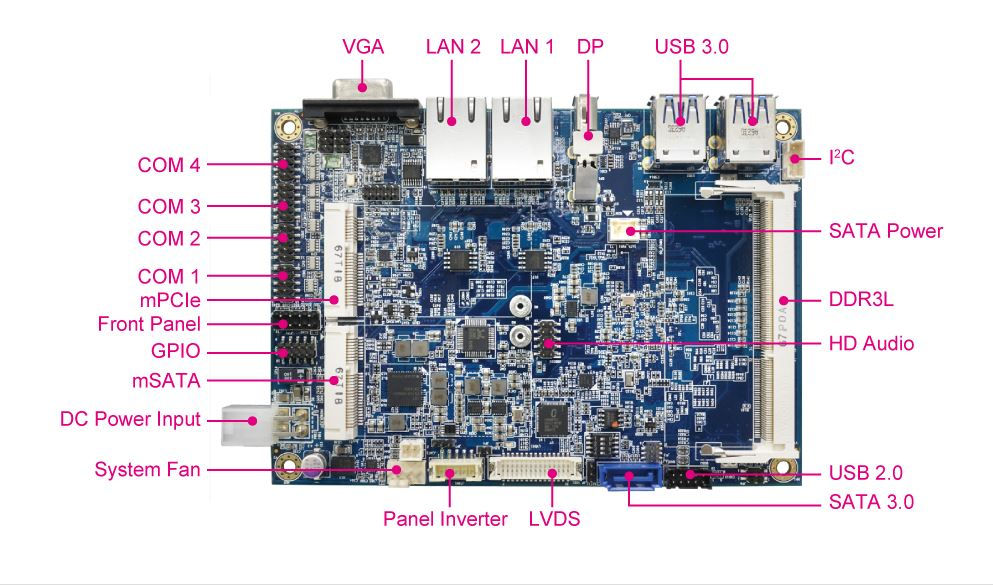

3.5" SBC Intel® Atom™ / Pentium® / Celeron® Processor
