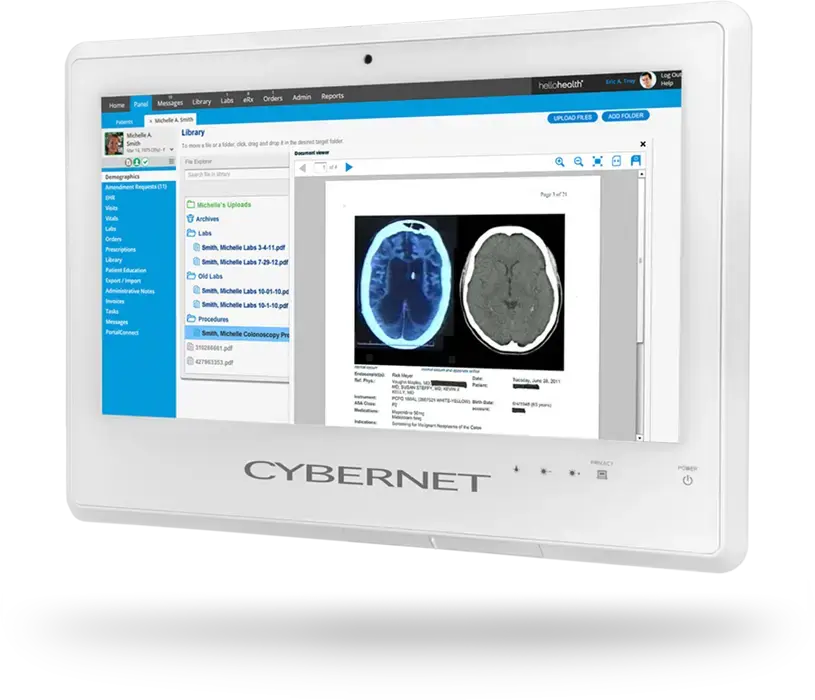

A medical touch screen monitor that pairs perfectly with any PC or cart computer
Antimicrobial Housing protects itself from harmful microbes
Medical Touch Screen Monitors with Anti-Glare Technology
Global UL/cUL 60601-1 & IEC 60601-1-2 4th Edition Medical Certifications


Display 20"
 1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio

Touch Screen
PCAP Multi-Touch with Optional Antiglare Technology
DC Power Out
Optional: Power Module with 26 Watts of Power Available for External Devices
Viewing Angle
Horizontal 178 Degrees , Vertical 170 Degrees (Typical)
Number of Colors
16.7M
Brightness
250 cd/m2 | 4k Models: 300 cd/m2
Response Time
25ms
Video Input
HDMI
Power Supply
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz
Supports Output Range: DC18V-19V. 6.3A Adapters.
12V/24V Support with Optional DC Converter

Waterproof
IP65 Sealed Front Bezel and IP54 Back Cover
Dimensions
20.35" x 14.37" x 1.95" (L,W,D)

Weight
 16.75 lbs

Wall Mount
Supports 75mm & 100mm VESA mounting holes
Environment
Operating Temperature: 0°C~35°C
Relative Humidity
10%~90% (non-condensing)
Certifications
UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE
I/O Ports
1x HDMI - In
1x USB (for touchscreen)
1x 4Pin DIN power Jack
1x Debug Service Port
2x WiFi Passthrough

Audio
2-channel 2Watt speaker facing back
Warranty
1 Year
