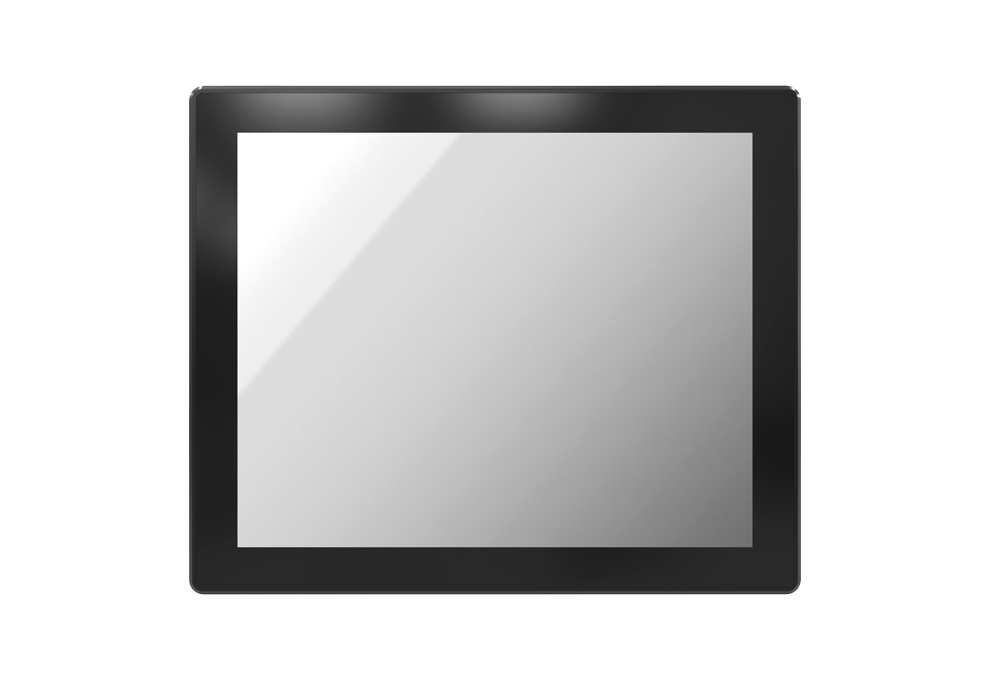

- 17” TFT SXGA 4:3 LCD with resistive 5-wire / projected capacitive touch
- Intel® 7th Gen (Kabylake-U) Processor Core™ i5-7300U, Core™ i3-7100U
- 1x 260-pin DDR4 SODIMM. max up to 16GB
- 1x 2.5” SATA HDD bay support RAID 0, 1
- 1x mSATA (shared by 1x Mini PCIe), 1x CFast (shared by 1x mSATA), 2x SIM socket
- 2x full-size mini PCIe for communication or expansion modules
- 2x LAN, 1x VGA, 1x DisplayPort, 1x Dual Channel 24 bit LVDS
- 4x RS-232/422/485, 4x USB 3.0, Audio
- 8x DI + 8x DO with isolation
- 9 to 50VDC wide range power input
- -10°C to 60°C extended operating temperature
- Designed with aluminum die-casting front frame
- IP65 compliant front panel
- Two 10W internal speakers built-in
- Multi-language OSD built-in
Display
LCD Size 17" (4:3)
Max. Resolution 1280 x 1024 (SXGA)
Brightness (cd/m2) 350 / 1000 (Optional)
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 170 / 160
Backlight MTBF 50000 hrs (LED Backlight)
System
Processor 7th Gen Intel® Core™ i5-7300U Processor, Dual Core, 3MB Cache, up to 3.5 GHz
7th Gen Intel® Core™ i3-7100U Processor, Dual Core, 3MB Cache, 2.4 GHz
System Chipset SoC integrated
LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)
GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB
BIOS AMI 128Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
Storage
SSD/HDD 1x Removable 2.5" SATA HDD Bay Support RAID 0, 1
mSATA 1x mSATA (shared by 1x Mini PCIe)
CFast 1x CFast (shared by 1x mSATA)
SIM Socket 2x External SIM socket
Mini PCI Express 2x Full-size Mini PCIe
I/O
VGA 1x VGA
DisplayPort 1x DisplayPort
LVDS 1x Dual Channel 24 bit LVDS
COM 4x RS-232/422/485
USB 4x USB 3.0
LAN 2x RJ45
Audio 1x Mic-in, 1x Line-out
DIO 8 in / 8 out (Isolated)
Others 3x WiFi Antenna Holes (VIO-217-PC400 only)
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
Other Features
Internal Speaker AMP 10W + 10W
OSD LCD On/Off, Auto, Menu, Up and Down Multi-language
Operating System
Windows Windows 10
Linux Linux kernel 4.X
Power
Power Mode AT, ATX
Power Supply Voltage 9~50VDC
Power Ignition Sensing Power Ignition Management
Power Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 12V/5A, 60W
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temp. -10°C to 60°C
Storage Temp. -20°C to 70°C
Relative Humidity 10%~80% (non-condensing)
IP Level IP 65 Compliant Front Panel
Vibration With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock 20G, half sine, 11ms
Standards / Certification CE, FCC Class A
Physical
Front Panel Construction Die-cast Flat Surface
Dimension 407.5 (W) x 339 (D) x 70.5 (H) mm
Weight ~ 7.27 kg
Mounting VESA Mounting Holes 75 x 75mm, 100 x 100mm
